316L Screw Barrels Plastic Pellets Making Machine Parts

Name: 316L Screw Barrels Plastic Pellets Making Machine Parts
Brand: BLM-IV-1
Price: 1 USD

China 316L Screw Barrels Plastic Pellets Making Machine Parts wholesale

Brand Name : BLM-IV-1

Place of Origin : Jiangsu, China (Mainland)

MOQ : Negotiation

Price : Negotiation

Payment Terms : Western Union, L/C, T/T

Supply Ability : 1000 per Month

Delivery Time : 25-30 days subject to the clients' requirement and quantity

Packaging Details : packed and labeled according to the regulations and customer's requests.Great care is taken to avoid any damage which might otherwise be caused during storage or transportation.

Place of origin : Jiangsu,China

Material : 316L/X260/W6Mo5Cr4V2 or customized

Spare parts type : spare parts for twin screw exruder

Application : Machinery Repair shops,Food an Beverage Factory

Center distance : 26mm

Screw distance : 30mm

Dimension（LxWxH) : 120x135x115mm

After warranty service : Video technical support,online support

Contact Now

Twin Screws Barrel Extruder Screw Design Plastic Pellets Making Machine Parts For Screws

1. Descriptions

Co-rotating twin screw extruder replacement parts, spare parts. Extruder screw elements, screw components, screw segements, barrel segments.

Screw

Screw Kneading block built on modular principle allows various L/D ratio of screw easily be changed to suit different material. Screw component made of high speed & wear-resisting steel.

Barrel

By means of the replaceable screw barrel sections, the processing sections is devided into individual zones. The barrels are heated electrically. In addition, the barrels are provided with longitudinal bores for cooling with water. Uniform temperature distribution, namely on the circumference of the eight-shaped barrel bore, is achieved by a reverse force-flow temperature control circuit. Connections of pipes for temperature control are in groove-tongue design to balance alternating thermal stress and avoid leakage.

The screw barrels are made of nitrided steel. In order to increase the service life of the screw barrels, these are provided with wear resistant inserts.

Product name	screw elements for twin screw extrunder from Bloom
Material	W6Mo5Cr4V2,38CrMoAIA,Imported HIP high speed steel,stainless steel,316L,Cr12MoV
Color	Abrasive blasting or Mirror polish
Diameter	15.6mm - 250mm
Application	twin screw extruder
Function Type	convey screw element,kneading screw element
Headage	1-flighted,2-flighted.3-flighted

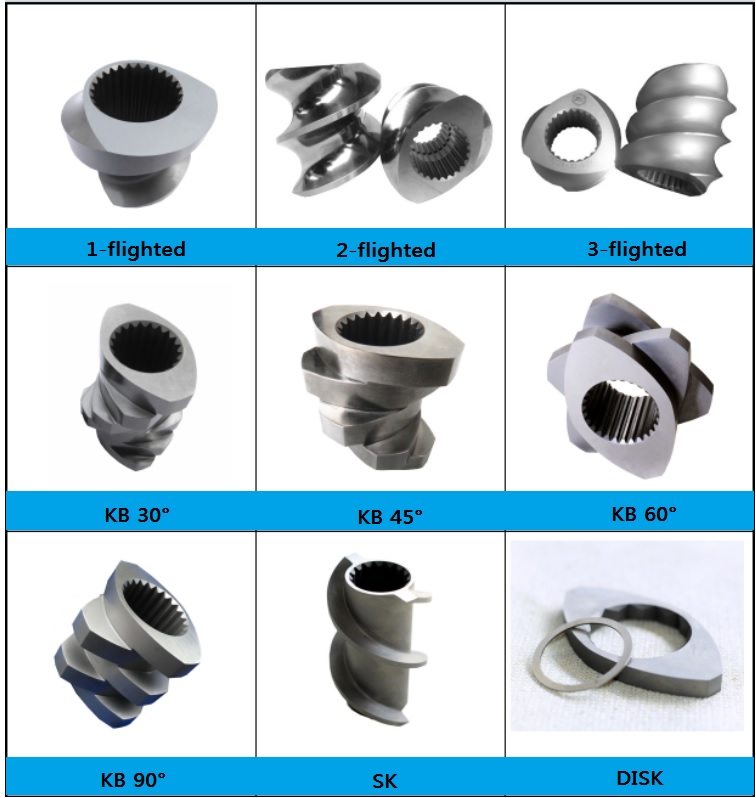

2 .Standard screw element

316L Screw Barrels Plastic Pellets Making Machine Parts

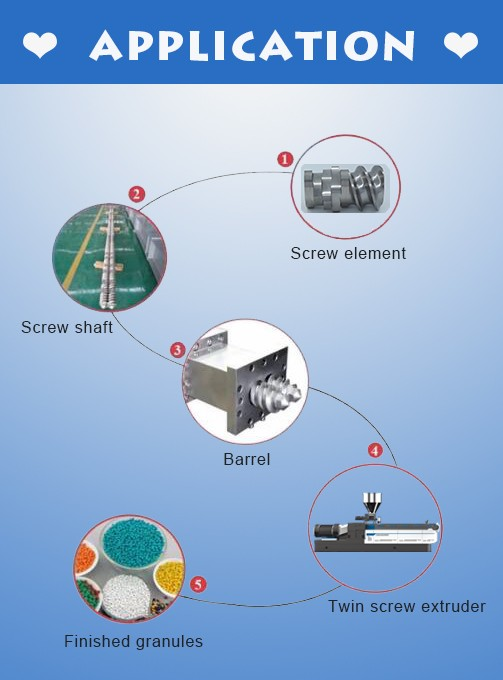

3. Applications

316L Screw Barrels Plastic Pellets Making Machine Parts

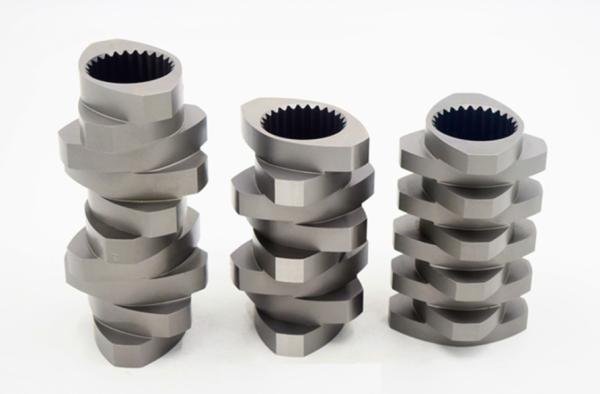

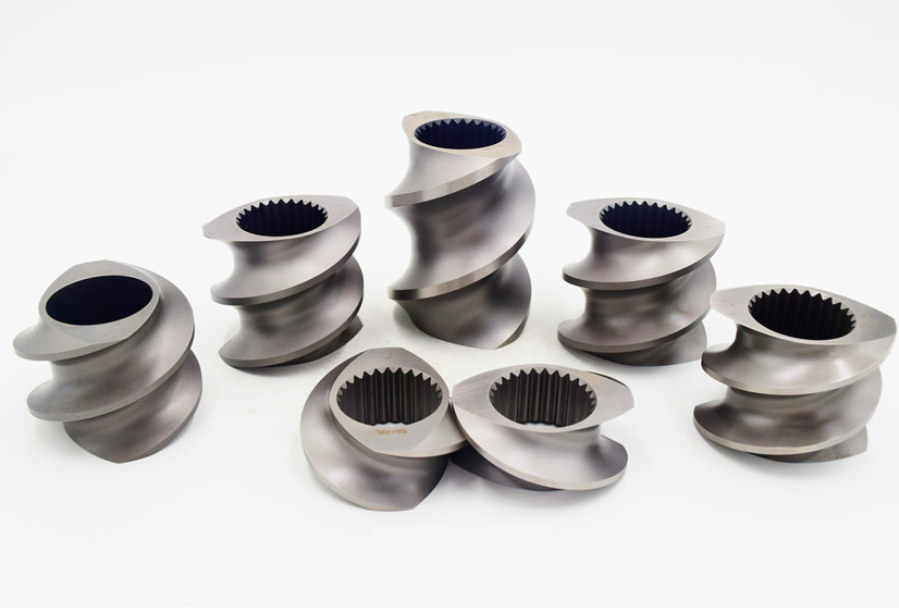

4 . Pictures:

316L Screw Barrels Plastic Pellets Making Machine Parts
